Snatch Strap

by Aaron Schubert on May 9, 2011

DSC 0014 Small 300x199 Snatch Strap

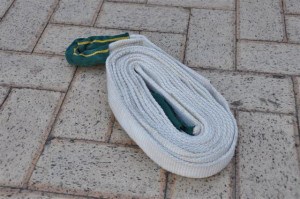

A rolled up Snatch Strap

What is a Snatch Strap?

A Snatch Strap is an essential piece of four wheel drive recovery equipment. They are used to recover stuck four wheel drives in mud, snow, sand or even rocky terrain. A Snatch Strap is designed to stretch (about 20% of the length of the strap), and as a result there is no shock loading in a recovery. You can comfortably get a run up when pulling a vehicle out and the momentum and weight of a four wheel drive will pull the other car out as it stretches. The best way to explain these is to look at a video – see below.

0 Snatch Strap

Before using a Snatch Strap, there are a number of things that you need to know. There have been deaths and serious injuries from incorrect use of Snatch Straps. These are very useful, but also extremely dangerous if not used correctly.

Cheap Snatch Straps

Everyone wants to save money when buying recovery gear. However, don’t compromise your safety by buying something that is poorly made. Quality Snatch Straps are made out of nylon, and have a rating clearly stated which tells you how much it can recover. Personally, I would recommend Just Straps. They are the cheapest, quality Snatch Straps on the market. Sure, they don’t have fancy colours or patterns, but I don’t look for that – I want something that is going to last, work well and recover four wheel drives (hopefully not mine!).

ARB Snatch Straps are also very popular, but they are more expensive. If you want to save some money on Snatch Straps, have a look online. Shipping is cheap (if they charge at all) and you will get better prices online than in your local four wheel drive shop. Have a look at the examples below from eBay and save yourself some money.

logo Snatch Strap
3214989109654040 1 Snatch Strap
BOGBUSTER SNATCH BLOCK 10000 kg WINCH ROPE CABLE PULLEY 4X4 4WD RECOVERY STRAP
AU $46.00 (23 Bids)
Time Remaining: 1d 18h 5m
2011097536624040 1 Snatch Strap
WARN 4X4 4WD Full Recovery Kit Shackles Snatch Strap Winch Extension etc
AU $189.00
Time Remaining: 14d 16h 38m
Buy It Now for only: AU $189.00
1713390846024040 1 Snatch Strap
WEREVR 60mm SNATCH STRAP 9M x 8T BRAND NEW
AU $45.00
Time Remaining: 20d 10h 1m
Buy It Now for only: AU $45.00
3215063983074040 1 Snatch Strap
BOGBUSTER SNATCH STRAP 10 METER 9000 KG RECOVERY 4X4 4WD OFF ROAD 9 TONNE KIT
AU $31.00 (3 Bids)
Time Remaining: 2d 16h 5m
1713390793924040 1 Snatch Strap
WEREVR 4X4 Snatch Strap 75mm 9M x 9T BRAND NEW
AU $49.00
Time Remaining: 20d 9h 53m
Buy It Now for only: AU $49.00
3215022175684040 1 Snatch Strap
BOGBUSTER RECOVERY KIT SNATCH WINCH STRAP SHACKLE BLOCK DEFLATOR BAG SHOVEL 4X4
AU $232.50 (12 Bids)
Time Remaining: 5d 16h 20m
1815026803284040 1 Snatch Strap
4x4 4WD RECOVERY KIT WITH 2 x SHACKLES SNATCH STRAP GLOVESAND BAG
AU $75.00
Time Remaining: 21d 3h 28m
Buy It Now for only: AU $75.00
3215063983104040 1 Snatch Strap
BOGBUSTER WINCH RECOVERY KIT EXTENSION STRAP SNATCH BLOCK BAG TREE TRUNK
AU $0.99
Time Remaining: 6d 16h 5m
2212320009004040 1 Snatch Strap
BOGBUSTER SNATCH STRAP 10 METER 9000 KG RECOVERY 4X4 4WD OFF ROAD 9 TONNE KIT
AU $65.50
Time Remaining: 18d 5h 58m
Buy It Now for only: AU $65.50

Things to know before using a Snatch Strap

DSC 0001 Small 300x199 Snatch Strap

A rated hook for 4500kg on my hilux

Recovery Points

When using a Snatch Strap, you need to attach it to a rated recovery point. By rated recovery point, I mean checking the rating written (usually 4500kg, 6000kg or 8000kg). A lot of four wheel drives have tie down points, which are not suitable for recovering off. You will break something, and cause yourself grief from recovering off these. If you are unsure of whether it is a tie down point or recovery point, have a look on Google images; you will clearly see that a Rated Recovery Point is built considerably stronger. If you still can’t work it out, ring the dealer or take it to a four wheel drive shop.

If you don’t have a rated recovery point, you shouldn’t be going four wheel driving. Most four wheel drives have a hitch, which you can recover off providing you remove the tow ball (see below for more information).

logo Snatch Strap
3610008567714040 1 Snatch Strap
MEAN MOTHER 4500Kg RATED TOW HOOK YELLOW 4WD Offroad Recovery Winch Strap Point
AU $34.95
Time Remaining: 22d 9h 45m
Buy It Now for only: AU $34.95
2515324889244040 1 Snatch Strap
NISSAN NAVARA D22 ROAD SAFE 4WD TOW POINTS RATED RECOVERY POINTS 4X4 5000KG
AU $105.00
Time Remaining: 13d 9h 52m
Buy It Now for only: AU $105.00
3610008594704040 1 Snatch Strap
MEAN MOTHER 4500Kg RATED TOW HOOK BLACK 4WD Offroad Recovery Winch Strap Point
AU $34.95
Time Remaining: 22d 9h 48m
Buy It Now for only: AU $34.95
DSC 0015 Small 300x199 Snatch Strap

My hitch recovery point

I will quickly mention a recovery point which is very useful for four wheel drives – the Hitch Recovery Point. These are fitted in the same way you would for a towball hitch, and to use them you simply remove the pin from the shackle, push the strap eye through and fit the shackle again.

The biggest advantage of using this is that they are easy to connect. If you leave your hitch in, you have to fight to take it out (and if you have to do this in the middle of a water puddle you will have a lot of trouble. Even if the hitch is out, you have to pull the R clip out, slide the strap in and make sure that the pin goes through it properly before putting the R clip back in. If are doing this in knee deep mud I guarantee that you won't be happy! The other advantage of using these is that they give you a much better departure angle (than if you left the hitch in). They only stick out about 30mm from the back of your towbar and the shackle will just slide upwards if you do manage to hit it. They are only about $50 - money well spent.

DSC 0017 Small 300x199 Snatch Strap

A rated 4500kg D Shackle

Shackles

Some recovery points allow you to slip the eye of the strap through (like a hook) but many are just plate with holes in them. If this is the case, to attach the Snatch Strap to the recovery point you need to use a D shackle. These also need to be rated (make sure the shackle is rated for at least the same amount as your strap and recovery point). Make sure the pins are done up properly too – even if you have to use a spanner to undo them at the end. A rated shackle has the rating stamped on the body. If it doesn't have a stamp, it isn't rated and you shouldn't use it.

Where possible, avoid using a shackle. When joining straps, do it with the straps only (don’t use a shackle). If you don’t need a shackle to fit onto the recovery point, don’t use one. The more heavy items in a Snatch Strap the more likely you are to have an accident.

Snatch Strap Weight Ratings

Every Snatch Strap has a weight rating which will tell you what you can safely recover. The standard ratings are 4500kg, 6000kg, 8000kg, 9000kg, 11000kg and 15000kg. The general rule is to buy a strap that is rated at least 3 times the weight of your vehicle. If you are towing something, you need to take this into account as well. For example, for My Hilux I use a 6000kg Snatch Strap (as it weighs less than 2000kg). If I was to tow a 1000kg trailer, I would need a 9 tonne Snatch Strap.

Again, there is no point having an 8000kg Snatch Strap if your shackles or recovery point is only rated at 4500kg. A lot of people think this is fine, but the weakest link will always break (and in this case flying metal will result!).

Equalizer Straps

Many four wheel drives have two recovery points on either end of their four wheel drive. If this is the case, you should make use of them with an equalizer strap. This connects the two points together in a ‘V’ shape. It is important to think about the angle between the two recovery points and the length of your equalizer strap. If you are put sideways force on the recovery point then they will likely break. As a result of this, you want the angle of the ‘V’ to be less than 60 degrees. Basically an equalizer strap that is too short will pull the recovery points together as a pose to forward.

P1282696 Small 300x225 Snatch Strap

Recovering off your tow ball is dangerous

Recovering off your tow ball

Tow balls are NOT recovery points. The most common mistake in regards to four wheel drive recoveries is people putting the eye of a Snatch Strap around a tow ball. If you do this, you are risking damage to people and property. Tow balls are not designed for shock load, which is effectively what you do when you give it a big pull from another vehicle. I have seen tow balls break, and they will literally go through almost anything. Shackles are just as bad, but they would most certainly cause severe injury if you were hit. There have been many people killed by improper recoveries – please think about what you are doing.

Instead of using a Snatch Strap off your tow ball, do the following. Remove the Reece Hitch R clip and pull the pin out. Remove the hitch (towball and all) and put it safely away in your vehicle. Push the strap into the hitch, and put the pin through the strap. Put the R clip back in and check the strap is set up correctly.

Check your Snatch Strap condition

Before using a Snatch Strap, you should inspect it. If you find places where it is fraying, or stitches are coming undone it’s time for a new strap. They don’t last forever, and will break down over time.

Snatch Strap lengths

Snatch Straps are usually 6m, 9m, 12m or 15m. I would suggest a 6 metre is too short in most circumstances – a 9 metre or 12 metre is a good start. If you do need more length you can join two together (if they are the same rating) and you do it properly. You should not join anything else to a Snatch Strap (equalizer straps, recovery chains and winch extension straps should not ever be used).

Joining a Snatch Strap properly

The recommended way of joining a Snatch Strap is simple once you see it done, but quite hard to explain (however, I will give it a go!). Take two straps (A and B). Feed Snatch Strap A through an eye of B. Then, feed the same eye of A over the other eye on B and pull it tight. Put a rolled up magazine between the two straps so that when it tightens you can get them undone easily.

Snatch Strap Dampeners

Every recovery involving a Snatch Strap should be done using one or two Snatch Strap Dampeners. These are basically canvas bags that fold over the strap, and slow it down should the strap break. When you see a strap break you clearly understand why slowing them down is a priority!

Using a Snatch Strap

There are a few techniques to using a Snatch Strap safely, which I will go into below. The video below will also show you how to safely use a Snatch Strap.

0 Snatch Strap

Consider the options

Is a Snatch Strap the best option? Which way are you going to pull the vehicle out? What can you attach it to? What are the tyre pressures involved? Take your time when coming up with a safe, effective way to recover a four wheel drive and you will get out quicker (and without any damage) than rushing into it.

Do some digging!

Walk around the vehicle that is stuck, and look at what you can do to make the recovery easier. In the case of sand, simply digging a bit of sand out of the way of your tyres will make a huge difference. You put a lot of extra stress on your straps when you are trying to pull a vehicle up onto a mound of dirt. Likewise, if there are rocks that can be moved just slide them out of the way.

Attach the Snatch Strap and check everything

Both car drivers should get out of their vehicle, and check that the recovery is set up correctly. If anything is wrong, it should be discussed and rectified. Both drivers need to be happy with the recovery before you go any further. Make sure your hubs are locked, four wheel drive (low range) is engaged and communication is arranged (UHF is ideal).

Move everyone out of the way

Anyone watching should be at least 20 metres away from the vehicles. If anything does break, the bystanders usually end up getting injured.

Get the stuck vehicle attempting to drive

When both drivers are ready, the stuck vehicle should be in 2nd gear low range, and trying to drive out (wheel spinning very slowly). This will aid the recovery when the vehicle is pulled out slightly.

200812290032 Small 300x225 Snatch Strap

Towing a Prado off the beach

Tow slowly first off

As the person pulling another vehicle out, take it slowly on the first try. I usually take the strap until it is taught, and then attempt to drive off slowly. Most recoveries will work this way – you don’t need a huge run up to pull most bogged vehicles out. If this doesn’t work, reverse back so there is a metre of slack in the strap and then take off. You can slowly increase the amount of slack used in the strap, but if it takes more than 3 decent pulls and there is no movement you need to get out and try something else. Pull the vehicle out of the way of danger, and ensure that they don’t run over the strap!

Don't run the strap over

I mentioned this above, but it does deserve another bullet point. If you are the car being pulled out, make sure you stay behind the vehicle pulling you out, and don't drive forward and over the strap. I have seen these wrap around axles and they will damage your break lines very quickly!

Angled recoveries

Snatch Straps are designed to be used in a straight line. You shouldn’t ever recover someone on much of an angle, or you risk something breaking. Of course, a small amount of angle is fine, but when you are pulling someone 60 – 90 degrees from your vehicle then you are asking for trouble. A good example of this is on a beach – if someone gets stuck near the water, you can safely pull them out from slightly higher up but don’t go too far that you risk something breaking.

Caring for your Snatch Strap

When you are done snatching, you should take it home and wash it (if it is dirty). Don’t use chemicals to wash the strap, or you are likely to damage it. Usually a good squirt of water and then leaving them to dry is all you need. Don’t leave straps damp, or they will rot and degrade. Don’t leave your straps in the sun, or they perish. Don’t drive on the straps, or you will damage them!

Snatch Straps are a great way of recovering a four wheel drive when used correctly. A lot of people know how to use them correctly, but there are still many that don’t know how to safely recover four wheel drives. At the end of the day, the safety of anyone involved in the recovery is the primary priority.

Do you have any horror stories or experience with using Snatch Straps? Please post a comment below and let me know!
